Flanged Vortex Flowmeter - FBVP
Flow measurement›Vortex flow measurement

Flanged Vortex Flowmeter - FBVP

Neodyn ,FBVP Series flanged vortex flowmeters are maintenance-free, with no moving parts. They feature a standard display, electrical outputs, and optional serial communication for easy monitoring and control. Built from materials compatible with many chemical fluids, they are ideal for measuring demineralized water, gases, and steam. Pressure and temperature compensation ensures accurate mass flow measurement

Technical Details

Measuring Range-Liquid0.3...7 m/sn
Measurement Range for Gas2...70 m/sn
Connection SizeDN15...DN300
Wet PartsAIS304, Ops, AIS316
Temperature250°C max Ops, 350°C
Pressure16 Bar max, Ops 40 Bar veya 100 Bar
Accuracy<±0.75% Q.D. ve ± 1 % Q.D.
ProtectionIP67 Ops. Ex d IIC T3 db
Supply<24V DC Ops. 230 VAC
Qty
Global Shipping

For more information about this product, download the catalog.

Our expert team is ready to guide you in selecting the perfect measurement instruments for your applications.

Contact Expert
1

Explore More

We suggest other products that may also be helpful to you

Industrial Conductivity Sensor
Conductivity
Liquid Analysis

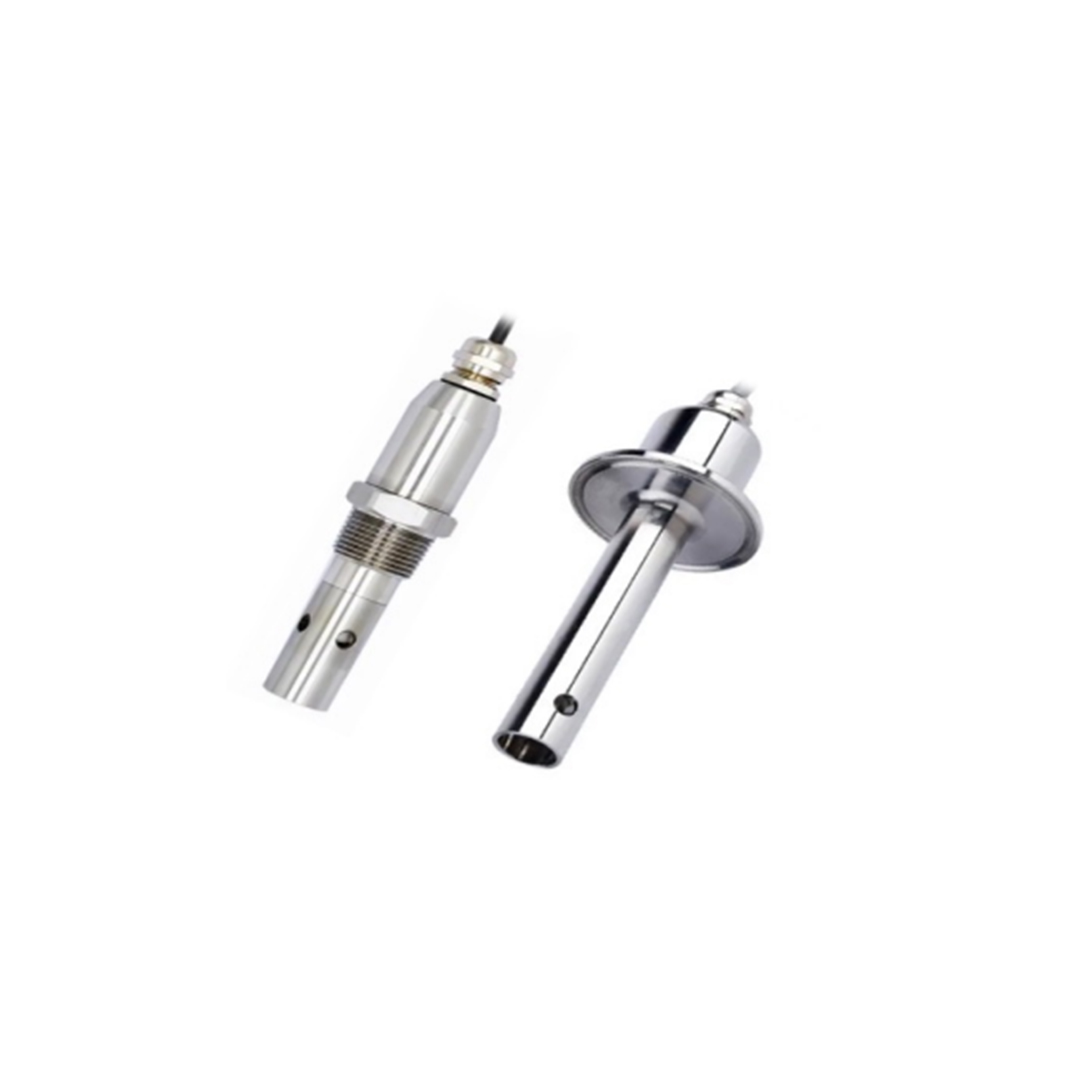

Industrial Conductivity Sensor

The Industrial Conductivity Sensor from Neodyn is designed to deliver precise and reliable measurements in demanding industrial environments. Its robust PVDF or SS316L stainless steel construction ensures long-lasting performance, even under harsh conditions. 2-electrode measurement principle, 3/4" NPT connection, diameters 12 or 19 mm. Temperature range from -10°C to +150°C depending on version.

View Details
Industrial pH/ORP Electrodes CPVC Body
pH - ORP
Liquid Analysis

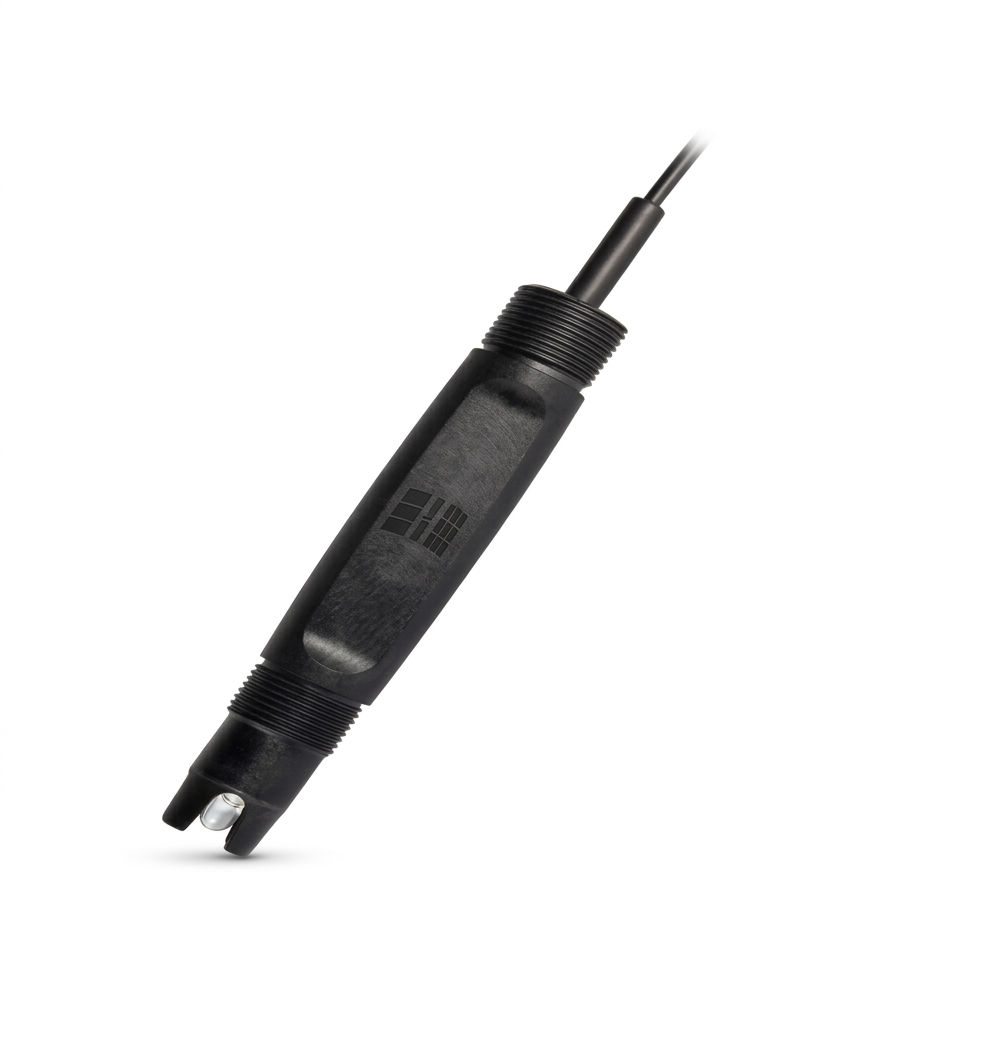

Industrial pH/ORP Electrodes CPVC Body
