NEO-MFB200 SITRANS Differential Pressure Transmitter
Pressure measurement›Pressure Transmitters

NEO-MFB200 SITRANS Differential Pressure Transmitter

The MFB200 is a robust differential pressure transmitter designed to provide accurate and reliable measurements in various industrial applications. Ideal for filter monitoring, level measurement in closed tanks, and flow control, it covers measuring ranges from 0-60 mbar to 0-25 bar. With standard ≤ 0.5 % or optional 0.2 % accuracy and 4-20 mA or 0-10 VDC outputs, it adapts to all automation systems. Its AISI304 or AISI316 stainless steel construction, resistance to temperatures from -40 °C to +125 °C, and IP65 protection (IP67 optional) ensure long-lasting reliability. HART-MODBUS optional communication available, the NEO-MFB200 is perfect for the chemical, petrochemical, water treatment, and power generation industries.

Technical Details

ConnectionG1/2', 1/2' NPT
Measurement Range0...60m Bar, 0...25Bar
Output4...20mA, 0-10VDC
Pressure<= 0,5 % T.S Ops. 0,2
Supply10...32 VDC
Temperature-40...+125 °C
Burst Pressure2x max. Scale
ProtectionIP65 Ops. IP67
CommunicationOps; HART-MODBUS
Wet PartsAISI304 veya AISI316
Qty
Global Shipping

For more information about this product, download the catalog.

Our expert team is ready to guide you in selecting the perfect measurement instruments for your applications.

Contact Expert
1

Explore More

We suggest other products that may also be helpful to you

NEO-MLSS SITRANS Hydrostatic Level Transmitter
Continuous Level Measurement
Level measurement

NEO-MLSS SITRANS Hydrostatic Level Transmitter

The Neodyn MLSS Hydrostatic Level Transmitter is part of the reliable MLS600 Series from Neodyn is designed for continuous level measurement in open-atmosphere tanks and has no moving parts. Its high accuracy makes it suitable for a wide range of fluids. An optional LCD display allows direct level readings.

View Details
NEO-MPS100 SITRANS Miniature Pressure Transmitter
Pressure Transmitters
Pressure measurement

NEO-MPS100 SITRANS Miniature Pressure Transmitter

The MPS100 is a miniature pressure transmitter specially designed for installations with limited mounting space, particularly valued by machine and industrial equipment manufacturers. Despite its compact size, it offers reliable performance for gauge or absolute pressure measurement, with ranges from 0-100 mbar to 0-600 bar. Available with G1/4" to G1/2" and NPT connections, it adapts to all hydraulic and pneumatic configurations. Its ceramic or SS316L diaphragm ensures excellent chemical compatibility. With standard ≤ 1 % or optional 0.5 % accuracy, 4-20 mA or 0-10 VDC outputs, and IP65, IP67, or IP68 protection, the NEO-MPS100 is the ideal solution for machine tools, robotics, hydraulics, and demanding industrial applications where space is critical.

View Details
NEO-MPS300 SITRANS Pressure Transmitter
Pressure Transmitters
Pressure measurement

NEO-MPS300 SITRANS Pressure Transmitter

The MPS300 is a pressure transmitter with an all-welded construction designed to guarantee exceptional durability in the harshest conditions. Specially adapted for immersion applications, it offers a wide measurement range from 0-100 mbar to 0-1000 bar. With standard ≤ 0.5 % or optional 0.2 % accuracy and multiple outputs available (4-20 mA, 0-10 VDC, 0-5 VDC, 1-5 VDC), it integrates into all data acquisition systems. Its robust construction withstands maximum pressures up to 3 times full scale and temperatures from -40 °C to +125 °C. Available with DIN 43650 A, M12, or connected cable electrical connections, and IP65, IP67, or IP68 protection, the NEO-MPS300 is perfect for measurements in tanks, wells, dams, and all submerged applications in the water, oil, and gas industries.

View Details

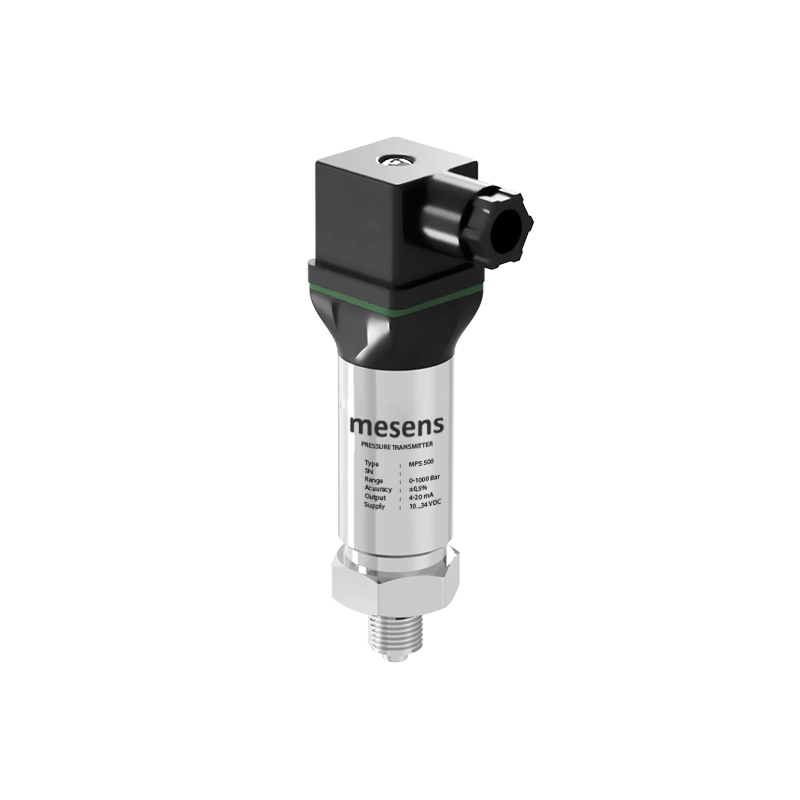

NEO-MPS500 SITRANS Pressure Transmitter
