NEO-P Compact SITRANS Pressure Transmitter
Pressure measurement›Pressure Transmitters

NEO-P Compact SITRANS Pressure Transmitter

The NEO-P Compact is an analog pressure transmitter specially developed to meet the stringent requirements of the food, pharmaceutical, and biotechnology industries. Designed for relative and absolute pressure measurement, it combines compactness, precision, and hygiene. With ≤ 0.2 % accuracy and exceptional long-term stability of ≤ 0.1 % over 12 months, it guarantees reliable and repeatable measurements over time. Available with measuring ranges from 0-160 mbar to 0-40 bar, it adapts to a wide range of sensitive applications. ATEX certified, the NEO-P Compact can be used in potentially explosive atmospheres, providing a safe and high-performance solution for the most demanding environments.

Technical Details

Accuracy≤ 0,2%
Long term stability≤ 0.1% / 12 months
Measuring range0- 160 mbar (0- 64 inchH2O) to 0- 40 bar (0- 580 psi)
Certificates/ ApprovalsATEX
Qty
Global Shipping

For more information about this product, download the catalog.

Our expert team is ready to guide you in selecting the perfect measurement instruments for your applications.

Contact Expert
1

Explore More

We suggest other products that may also be helpful to you

NEO-P200 SITRANS Pressure Transmitter
Pressure Transmitters
Pressure measurement

NEO-P200 SITRANS Pressure Transmitter

The Sitrans P200 is a compact pressure transmitter designed for the precise measurement of absolute and gauge pressure in industrial and sanitary applications. Featuring a robust ceramic sensor, it guarantees excellent performance and long-term stability, even in demanding environments. Ideal for integration into pipelines or tanks, the P200 converts pressure into a standard 4-20 mA signal for direct monitoring by a PLC. It is perfectly suited for the chemical, petrochemical, water treatment, and hygienic process industries requiring reliability and a compact design.

View Details
NEO-P220 SITRANS Pressure Transmitter
Pressure Transmitters
Pressure measurement

NEO-P220 SITRANS Pressure Transmitter

The Sitrans P220 is a pressure transmitter designed for reliable gauge and absolute pressure measurement of liquids, gases, and vapors in general industrial applications. Equipped with a robust ceramic measuring cell, it offers excellent resistance to overpressure and harsh environments. With measuring ranges from 1 to 60 bar for gauge pressure and 0.6 to 16 bar for absolute pressure, it covers a wide range of common applications. Its ≤ 0.25 % nonlinearity and ≤ 0.25 % long-term stability over 12 months ensure accurate and reliable measurements over time. Ideal for the chemical industries, water treatment, mechanical engineering, and all industrial applications requiring a robust and cost-effective transmitter.

View Details

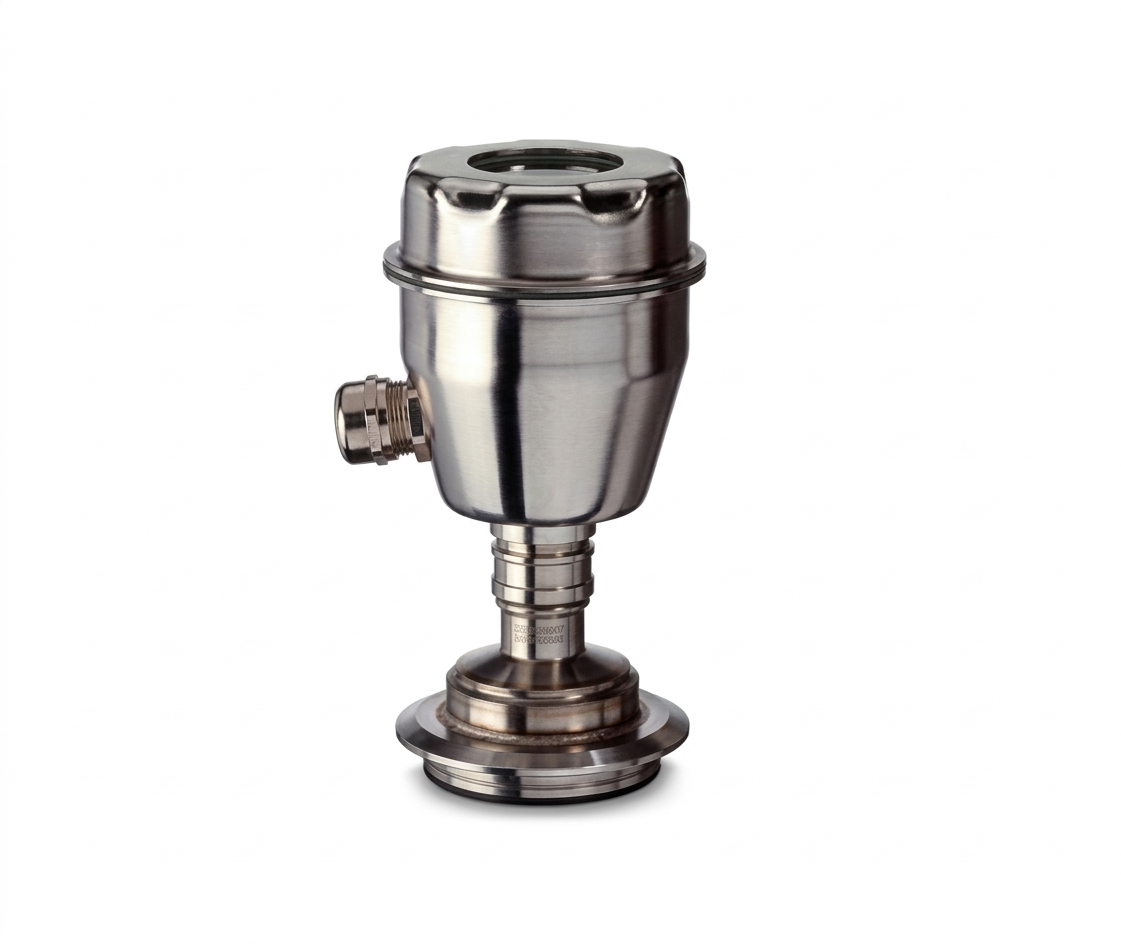

NEO-P300 SITRANS Pressure Transmitter
Pressure Transmitters
Pressure measurement

NEO-P300 SITRANS Pressure Transmitter

The Sitrans P300 is a high-performance pressure transmitter combining exceptional measuring accuracy with rugged durability. With ≤ 0.075 % accuracy and ≤ 0.25 % long-term stability over 60 months, it guarantees reliable and repeatable measurements over time. Its stainless steel housing and wide range of hygienic process connections make it ideal for sensitive applications in the food, beverage, and pharmaceutical industries. Covering measuring ranges from 0-10 mbar to 0-400 bar, the Sitrans P300 suits both low and high pressures, offering a versatile solution for all your pressure measurement needs in demanding environments.

View Details

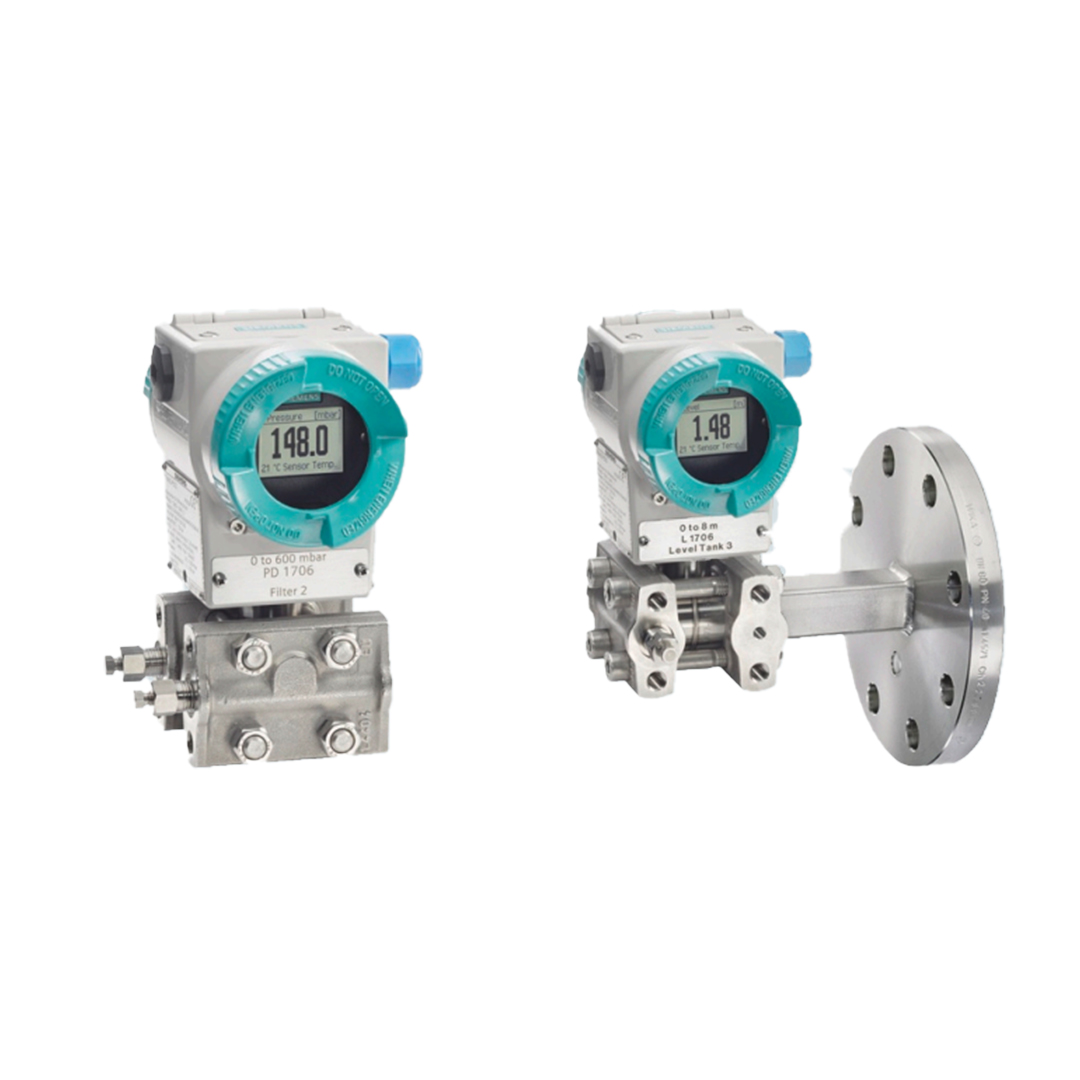

NEO-P500 SITRANS Digital Pressure Transmitter
Pressure Transmitters
Pressure measurement

NEO-P500 SITRANS Digital Pressure Transmitter

The Sitrans P500 is a high-performance digital pressure transmitter designed to meet the most stringent demands for accuracy, long-term stability, and measurement speed. Versatile and user-friendly, it can be configured to measure not only differential pressure but also level, volume, mass, and volumetric flow in tanks and pipelines. With measuring ranges from 2.5 to 1000 bar (36 to 14 500 psi) and a 4-20 mA output with configurable low threshold, it offers exceptional flexibility for the most complex applications. Ideal for the petrochemical industries, refining, power generation, and large industrial processes requiring multivariable measurements and high precision.

View Details
