NEO-UFCKD Coriolis Flow Meter
Flow measurement›Coriolis flow measurement

NEO-UFCKD Coriolis Flow Meter

The Neodyn U FCKD is a high-precision Coriolis mass flow meter designed to simultaneously measure mass flow, density, and temperature of liquids and gases. Insensitive to variations in density, viscosity, or pressure, it ensures exceptional accuracy up to ±0.1%, even under the most variable process conditions. With connections ranging from DN15 to DN200 and a construction in AISI 316 stainless steel, it is suitable for cryogenic applications down to −200 °C as well as high-temperature processes up to 350 °C (optional). Ideal for the chemical, petrochemical, pharmaceutical, and food & beverage industries, the NEO-UFCKD provides a reliable and precise solution for critical flow and density measurements.

Technical Details

Measuring Range-Liquid0-1...0-500 t/sa.
Measurement Range for Gas0-0,2...0-500 t/sa
Connection SizeDN15...DN200
Wet PartsAISI316
Temperature-200...200°C (Ops; +350°C)
Pressure40 Bar max.
Accuracy<±0,1% veya <±0,2%
ProtectionIP67 (Ops; Exproof)
Qty
Global Shipping

For more information about this product, download the catalog.

Our expert team is ready to guide you in selecting the perfect measurement instruments for your applications.

Contact Expert
1

Explore More

We suggest other products that may also be helpful to you

NEO-ULS200 SITRANS Ultrasonic Point Level Switch
Point Level Switches
Level measurement

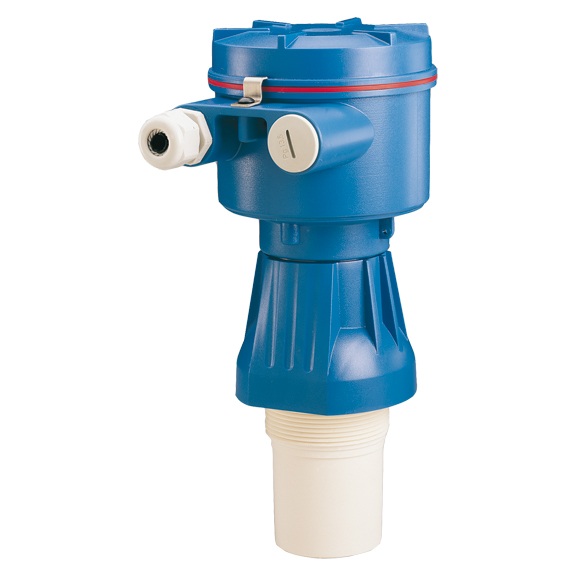

NEO-ULS200 SITRANS Ultrasonic Point Level Switch
