Dissolved Oxygen Analyzer Panel Mount
Liquid Analysis›Oxygen

Dissolved Oxygen Analyzer Panel Mount

The Neodyn Dissolved Oxygen Analyzer - Panel Mount is a reliable and user-friendly device designed to monitor dissolved oxygen levels with high accuracy. It features a selectable LCD display (ppm, mg/L, % air) for real-time readings and offers analog and digital outputs for seamless integration into control systems. Automatic or manual temperature calibration, PT100 temperature sensor. Power supply 110/220 VAC or optional 24 VDC. Dimensions 96x96x155 mm DIN 43700. Suitable for water treatment, drinking water, aquaculture, biotechnology, and food industry applications.

Technical Details

DisplaySelectable LCD Unit (ppm-mg/L% Air-mining)
Output0/4...20 mA and Relay
Temperature CalibrationAutomatic or Manual
Temperature SensorPT100
Power Supply110/220 VAC Optional 24 VDC
Dimensions96x96x155 mm DIN 43700
Qty
Global Shipping

For more information about this product, download the catalog.

Our expert team is ready to guide you in selecting the perfect measurement instruments for your applications.

Contact Expert
1

Explore More

We suggest other products that may also be helpful to you

Dissolved Oxygen Analyzer Wall Mount OD7635 Series
Oxygen
Liquid Analysis

Dissolved Oxygen Analyzer Wall Mount OD7635 Series

The OD7635 Series Dissolved Oxygen Analyzer from Neodyn is designed for use with polarographic and galvanic probes. It features an LED display for easy reading and provides both analog and digital outputs for remote signal transmission. Automatic or manual temperature calibration, PT100 or PT1000 temperature sensor. Power supply 85-264 VAC or optional 24 VDC. Dimensions 96x96x155 mm DIN 43700. Ideal for water treatment, drinking water, food industry, biotechnology, and fish ponds.

View Details
Economical Conductivity Transmitter C630 Series
Conductivity
Liquid Analysis

Economical Conductivity Transmitter C630 Series

The C630 Series Conductivity Transmitter from Neodyn operates with a supply voltage of 10 to 30 VDC and provides a 4-20 mA output. Measuring ranges from 0-20 mS to 0-2000 mS, temperature from -10 to +120°C. Compact dimensions 105x95x58 mm, 1 1/2" NPT-M connection, operating temperature 0 to 50°C. Economical and reliable solution for conductivity monitoring.

View Details
Economical Conductivity Sensor
Conductivity
Liquid Analysis

Economical Conductivity Sensor

The Economical Conductivity Sensor from Neodyn is suitable for measurements in agricultural applications, water treatment, the food industry, and ultra-pure water applications. With its AISI316 stainless steel electrode material and robust PP or PVC body, it delivers reliable performance even in precision applications. Measuring range from 0.1 to 2000 µS up to 20 S, max temperature 80°C, max pressure 6 bar. Integrated PT100-PT1000 temperature sensor.

View Details

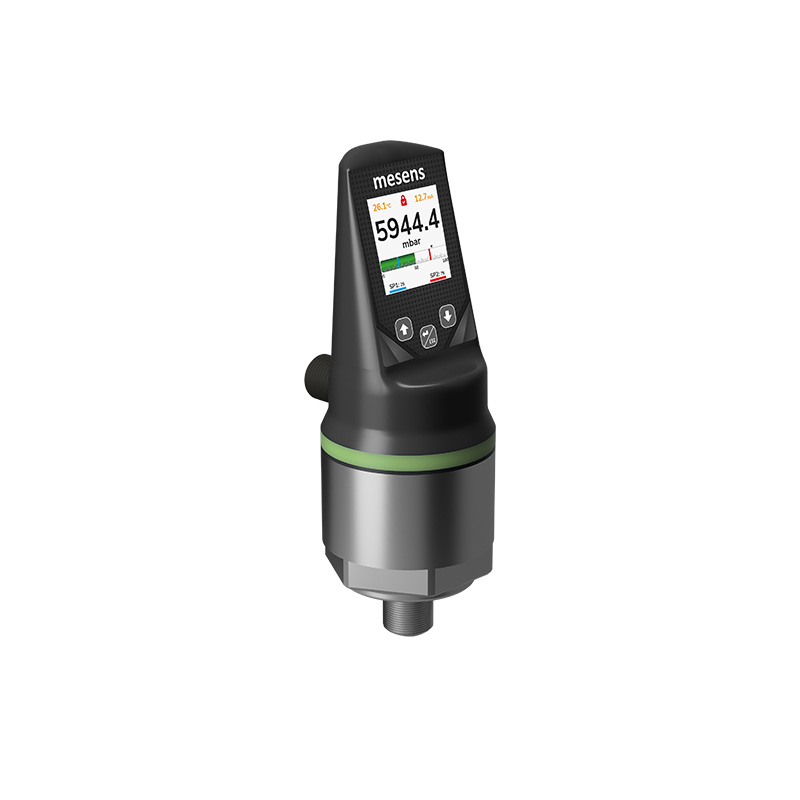

Electronic Pressure Switch MSPS
